Upgrade your DIY power bank or multi-device charger with this high-performance 22.5W fast charging circuit module. Designed with Quick Charge 4.0 and Power Delivery 3.0 protocols, it ensures efficient and intelligent charging for all modern smartphones, tablets, and USB-powered devices.
⚙️ Key Features:
-
✅ Total Output Power: 22.5W high-speed charging
-
⚡ Fast Charging Protocols: QC4.0, PD3.0, SCP, FCP, AFC, and more
-

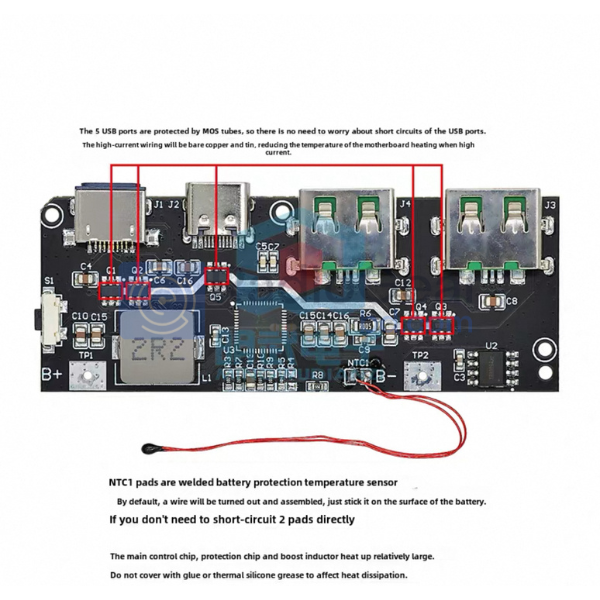

🔌 5 Output Ports: Multiple USB-A and Type-C outputs for simultaneous charging
-
🔋 Input Voltage: 3.7V–5V (supports 1S lithium battery)
-
💡 High Efficiency Conversion: Stable output with low heat generation
-
🔧 Compact & Easy to Integrate: Ideal for DIY power banks, charging stations, or custom projects
-
🛡️ Built-in Protection: Over-voltage, over-current, short-circuit, and temperature protection
📦 Applications:
-
DIY power bank making
-
Multi-device fast charging hubs
-
Portable charging stations
-
Robotics and embedded projects requiring regulated USB power
This powerful circuit module combines efficiency, safety, and flexibility—perfect for makers, engineers, and DIY enthusiasts looking to build reliable, high-performance charging solutions.
